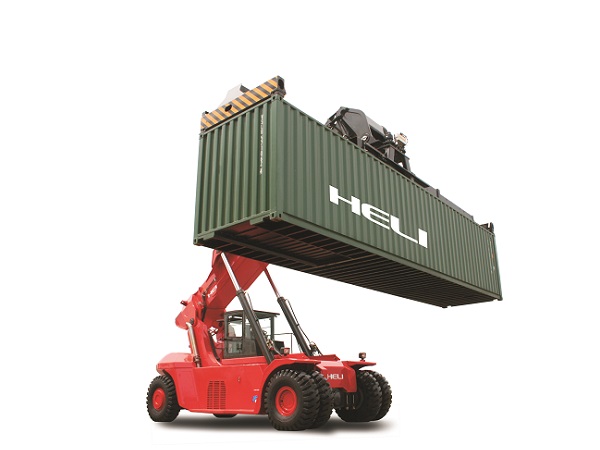

forklift picking up containers are specialized lifting equipment. Used to lift or pick up containers, stack them up or lower them. At seaports or dry ports, owning a container forklift couldn’t be better; because the vehicle is flexible, investment costs and maintenance costs are low.
Characteristics of forklift picking up containers
- Heli container forklift is designed by Kalmar company. Professional and famous design unit in Europe. The container forklift conforms to the standards: EN1459, DIN15018 and ISO WD 22915-12.
- Considering both the static and dynamic stability and safety of the vehicle is very good. Our products are used in Singapore, Venezuela and Poland. The car is considered more stable than other products with the same investment level. The lifting and running speed, fast and efficient is excellent.
- 45 ton container forklift using VOLOV engine (TAD952VE); integrated CAN-BUS engine management system; Conforms to European III EU standards.
- The cyclone air filter system is cleaner, ensuring the engine’s precision components function properly. The air filter system, engine oil filter, fuel oil filter… are all handled by Donaldson (USA).
- Automatic electro-hydraulic TE27 control. The latest gearbox imported from DANA company (USA). Control with CAN-BUS and through proportional valve technology. Can reduce impact when turning and reversing; improve quality and reliability.
- The engine and transmission are optimized for power and both are controlled by CAN-BUS. And hydraulic energy saving technologies including: Flow regeneration, variable system, double confluence pumps, pipeline optimization, are adopted. The result is low fuel consumption and operating costs. When spraying extends approximately 40 feet, visibility is good and blind spots do not exist.
Safe and modern electrical system
Automotive electrical system design principles are applied to container forklifts, satisfying the special and harsh use environment requirements of construction machinery for better road use. And also according to the principle of creating conditions for future forklift maintenance to be easier and more economical. The control system (Wiz) of 3B6 company (Italy) is responsible for design and production.
Technical specifications of forklift loading and unloading 45 ton containers
| Model | Unit | RSH4528-VO2 | RSH4532-VO2 | RSH4536-VO2 | |
| RSH4528-CU | RSH4532-CU | RSH4536-CU | |||
| Lifting capacity | LC1/LC2/LC3 | Kg | 45000/28000/14000 | 45000/32000/16000 | 45000/36000/19000 |
| Load center | LC1/LC2/LC3 | mm | 1800/3850/6400 | 1800/3850/6400 | 1800/3850/6400 |
| Lifting height at LC1 | mm | 15050 | |||
| Spreader | Sideshift | mm | +800~-800 | ||
| Rotation | ° | -95~+185 | |||
| Turning radius | mm | 8590 | |||
| Boom angle | deg | 60 | |||
| Length | mm | 11670 | |||
| Width | mm | 4060 | |||
| Engine | VOLVO TAD1151 | ||||
| CUMMINS QSM11 | |||||
| Transmission (gears forward/reverse) | DANA TE27(4/4) | ||||
| Driving axle | Kessler | ||||
| Driving brake system, type | Wet disc brakes | ||||
