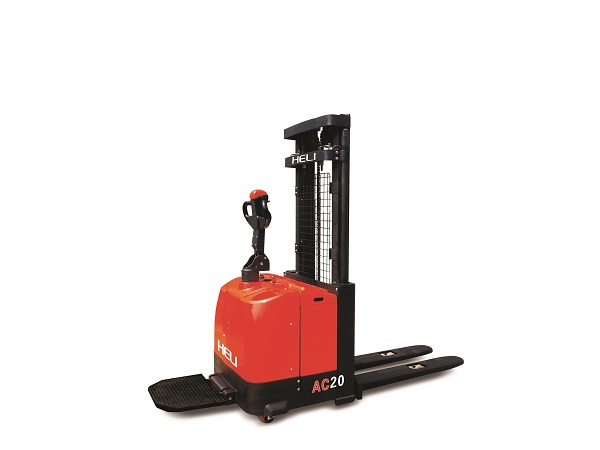

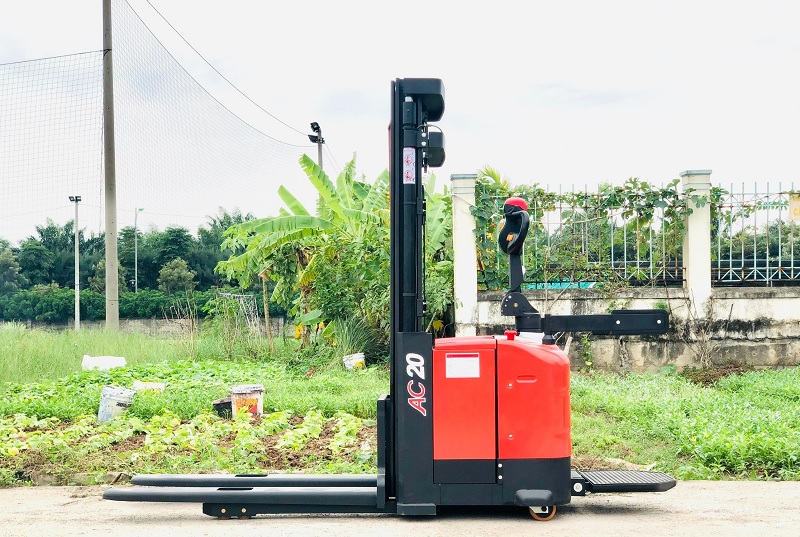

Electric stacker forklift CDD20-D930 (2 tons) is specifically for lifting goods in warehouses with small spaces and Epoxy floors. Integrating many new features and technologies to help support drivers safely and effectively.
Features of Electric rech truck CDD20-D930
- The motor uses AC alternating current.
- Genuine imported controller Curtis.
- AC moving motor: 1.5 kW flexible moving speed: 6 km/h
- DC lifting motor: 3 kW lifting speed: 180 mm/s
- Power steering motor (EPS): 0.15 kW helps the driver operate smoothly and flexibly.
- Strong hill climbing ability: 8%
- Batteries use global HELI standards
Lead-acid batteries
- Voltage/Battery capacity 24/280 V/Ah
- Charging time: 4-5 hours
- Usage time: 6-8 hours
- Lifespan 6-7 years
- Warranty 12 months
- Regular maintenance of Lead-acid batteries.
Lithium-ion battery
- Voltage/Battery capacity 24/210 V/Ah
- Charging time: 1-2 hours
- Usage time: 7-8 hours
- Lifespan 8-10 years
- 12 month vehicle warranty
- Lithium-ion Battery Warranty 60 months (10,000 hours)
- Lithium-ion batteries are maintenance-free.
Basic technical specifications of 2 ton warehouse electric forklift
| Model | Unit | CDD16/20-D930/950 (Lead-acid | Li-ion) | ||
| Operating type | Moving around in the warehouse | |||
| Max lifting height | mm | 1400/2500/3000/4000/4500/5000/5800 | ||
| Rated Capacity | kg | 1600/2000 | ||
| Load Center | mm | 600 | ||
| Forklift size | mm | 2120-2470x856x1980 | ||
| Fork size | mm | 1220x185x55 | ||
| Ability to climb slopes | % | 6/8 | ||
| Movement speed | Km/h | 6/6 | ||
| Lifting speed | mm/s | 130/180 | ||
| Lower speed | mm/s | 100/160 | ||
| Turning radius | r | 1580/1990 | ||
| Wheels move | PU (1/2/4) | |||
| Controller | ZAPI | |||
| Drive motor | kW | AC1.5 | ||
| Lifting motor | kW | DC3 | ||
| Power steering motor EPS | kW | 0.15 | ||
| Battery | Lead-acid | Lithium-ion | |||
| Voltage/battery capacity | V/Ah | 24/280 | 24/210 | ||
| total weight | Kg | 1312 | 1078 | ||
Genuine Heli forklift dealer in Vietnam, specializing in distributing CDD20-D930 warehouse electric forklifts
