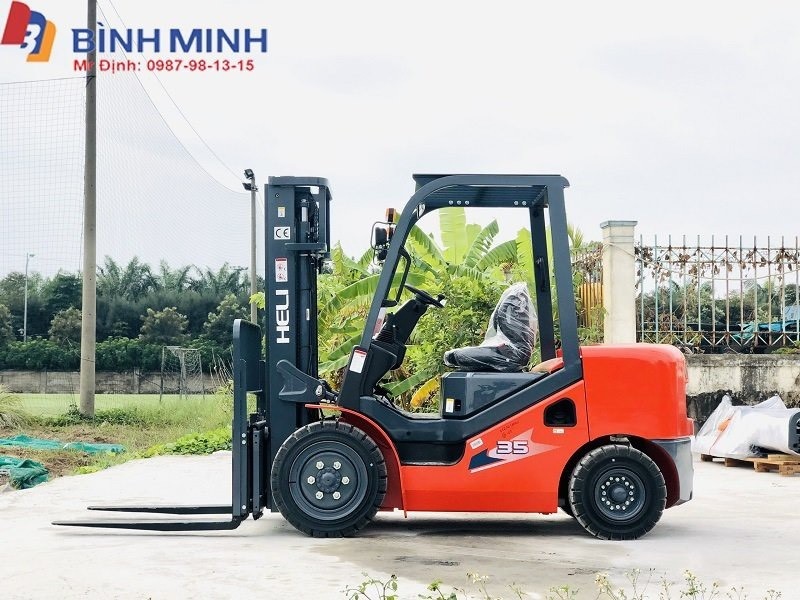

1-3.5 tons diesel forklifts, high-end H3 series, is HELI’s main product line sold on the market. The car inherits advanced technologies; Summarizing decades of experience in the forklift equipment industry. Not only is it high-performance operating technology, the manufacturer also focuses on comfort and safety for the driver. Understanding this, the engineer cleverly included the necessary designs; brings the most satisfaction to users.
Features on H3 series 1-3.5 tons diesel forklifts
Smooth operation
H3 series 1-3.5 tons diesel forklifts have a damping system installed right under the hood, made of natural rubber cushions with high elasticity, good absorption of external forces. Vibration on the cabin wall will be reduced by 20%, noise will be reduced by 3Db; The driver will clearly feel the difference when operating the forklift.
The tilt cylinder is hidden under the floor, plus the ceiling frame is made high; Maximize driving space and driver comfort. Modern electric gear lever and light switch; Easy and professional operation. The steering wheel is small, steering is light and precise, does not cause hand fatigue.
Forward visibility is improved by more than 20%, through the extension of two lift columns and a seat design that is higher than previous versions. HELI diesel forklifts have almost no blind spots, due to the optimized design of the counterweight shape. Combined with new rearview mirrors, wide visibility.
Driver-friendly diesel forklift
The electric gear lever and light switch are easy and professional to operate. The steering wheel is small, steering is light and precise, does not cause hand fatigue. The vehicle has almost no blind spots, due to the design optimizing the counterweight shape. Combined with new rearview mirrors, wide visibility.
Lifting and lowering smoothly and safely with the throttle valve will minimize the amount of return oil released; This mechanism helps reduce the cylinder’s lowering speed. The vehicle’s center of gravity is optimally distributed; also contributes significantly to moving and lifting goods, stably and safely.
High-quality cooling water tank is made of ultra-thin aluminum foil panels, intelligently designed, helping to diffuse water temperature better. Cast steering shaft with wide steering angle, minimizing turning radius. Vehicles move more flexibly within factories with narrow aisles.

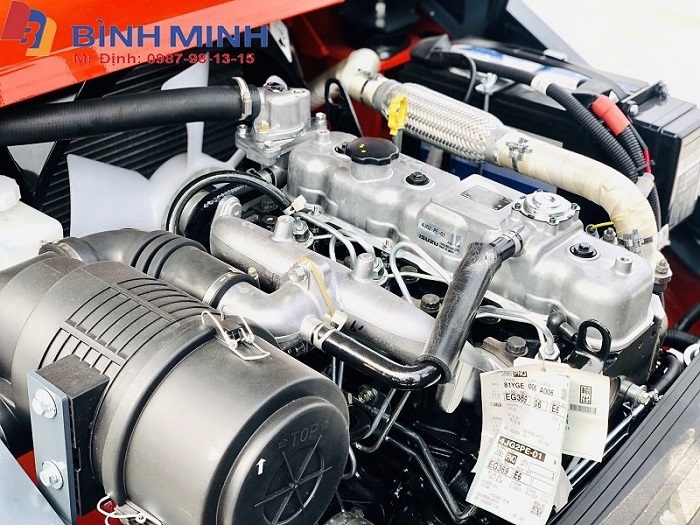

1-3.5 ton diesel forklift engine is durable and operates smoothly.
H3-series high-end 1-3.5 tons diesel forklift equipped with Isuzu C240 engine, capacity of 35.4 kW, 4 cylinders in line; assembled according to Japanese Isuzu standards; compact design; smooth operation; energy saving; easy maintenance. In addition, the H3-Series has the option of a large capacity 46 kW Isuzu 4JG2 engine; More powerful and offers better climbing ability.

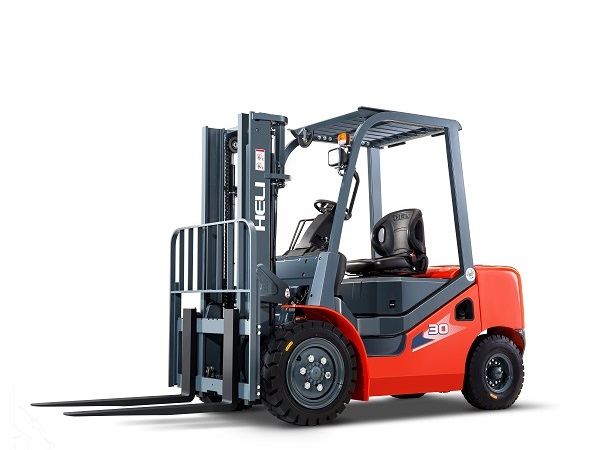

Basic technical specifications on the 2-3.5 ton HELI forklift
| Model | unit | CPCD20 | CPCD25 | CPCD30 | CPCD35 |
| Power Unit | Diesel/Gasoline/LPG/Dual Fuel | ||||
| Rated Capacity | kg | 2000 | 2500 | 3000 | 3500 |
| Load Center | mm | 500 | 500 | 500 | 500 |
| Max.Lifting height | mm | 3000 | 3000 | 3000 | 3000 |
| Max.Fork lifting height (with backrest) | mm | 4030 | 4030 | 4245 | 4235 |
| Overall length (with/without forks) | mm | 3500/2580 | 3708/2638 | 3818/2748 | 3836/2766 |
| Overall width | mm | 1150 | 1150 | 1225 | 1225 |
| Overall height (overhead guard) | mm | 2150 | 2150 | 2170 | 2170 |
| Wheel base | mm | 1650 | 1650 | 1700 | 1700 |
| Min.Turning radius (exterior/interior) | mm | 2170/180 | 2240/180 | 2400/200 | 2420/200 |
| Mast tilting angle | deg | 6/12 | 6/12 | 6/12 | 6/12 |
| Total weight | kg | 3370 | 3740 | 4340 | 4700 |
| Engine mode | ISUZU C240 | ISUZU 4JG2 | |||
| Rated power | kW/rpm | 35.4/2500 | 44.9/2450 | ||
| Rated torque | Nm/rpm | 139.9/1800 | 184.7/1600-1800 | ||
| Emission | Euro Stage IIIA | ||||
Consulting on choosing the best 1-3.5 ton diesel forklift
