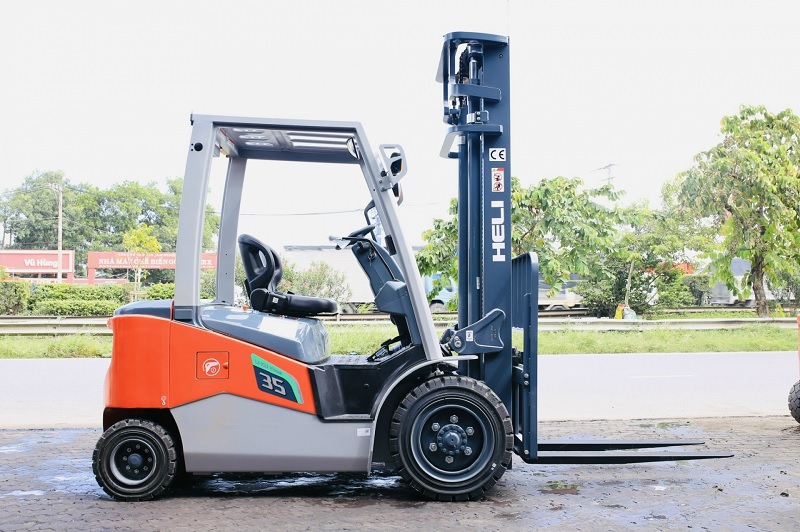

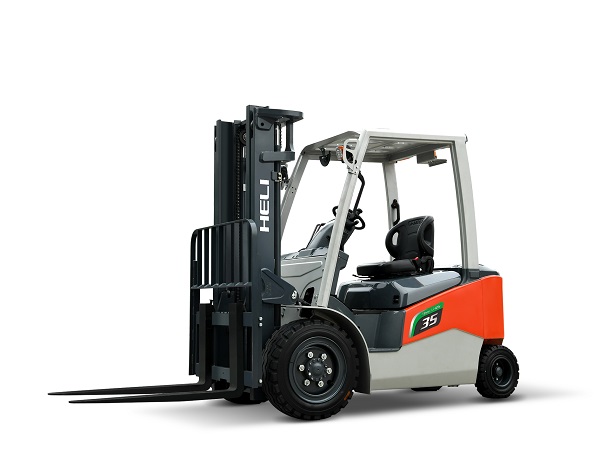

G2 Series 3-3.5T

Lithium electric forklift 3 tons to 3.5 tons customers will save a lot of costs such as: fuel consumption costs, vehicle maintenance costs, annual depreciation costs compared to forklift rental costs. operate.

The average fuel consumption cost of a 2.5 ton thithium electric forklift working 7-8 hours is about 23.76 kW/h, or 8 hours: 47,500 VND. Because an 8-hour working day costs 47,500 VND, 360 days costs 17,100,000 VND.

The cost of maintenance, free maintenance or the cost of checking lifting joints and pumping beef grease is about 300,000 VND – 500,000 VND.

Depreciation costs equal to annual forklift rental, with electric forklift rental price 15,000,000 VND – 17,000,000 VND / 1 month. The 3-year rental cost will be equal to the price of buying a Lithium electric forklift, while if you invest in a lithium electric forklift, the lifespan will be about 9-10 years.

Outstanding features of lithium electric forklift 3 tons to 3.5 tons

Strong performance, excellent and efficient

Three configurations of S/M/H can be selected at will. M/H configuration models have superior overall performance, comparable to fuel trucks, and significantly improved operating efficiency.

Intelligent safety, comprehensive protection

• Curve deceleration function: automatic deceleration function in the curve, which can reduce the risk of overturning in the curve;
• Steering wheel to start steering: the steering wheel can directly start the steering function, and provide the required amount of fuel according to the speed of the steering wheel;
• Color screen instrument: Chinese and English switching, battery display, tire angle and other information at a glance, more functions, more convenient operation;
• PES three-speed mode: a variety of speed modes can be freely selected according to the working conditions to ensure operating efficiency
• The armrest with horn switch after reversing makes driving safer;
• The lithium battery is automatically heated at low temperature and has excellent low temperature adaptability.

Human-machine optimization, comfortable driving

• Brake fluid position is within easy reach, it is more convenient to check and replenish;
• Mast optimization and stamping of the roof protection frame can enhance the field of vision and ensure safety;
• The USB power supply design is more intimate.

Reliable quality, safe and worry-free

The integrated cast drive axle and reinforced cast steering axle have been proven in the market for a long time, mature and reliable, and the mast is optimized for force design, which improves overall performance and effectively guarantees operational safety.

Harsh environment, worry-free operation

• IPX4 waterproof: the vehicle is powered on to simulate a short-term 5000L rainstorm test for 15 minutes, and the truck can run continuously without failure.
• The whole truck lasts 200mm for 10 minutes, and the whole truck has no trouble.
• The whole truck is operated alternately for 6 hours in the cold storage at -20℃, and parked in the cold storage for 12 hours, the truck is trouble-free and can run continuously.
• Simulate bumpy road.

Centralized maintenance, fast and convenient

The electrical design is concentrated on the lithium battery above the counterweight, and the inspection points are concentrated for easy inspection and maintenance.

Specifications of Lithium Heli electric forklift 3 tons to 3.5 tons

Model	Unit	CPD30					CPD35	CPD38
Load Capacity	kg	3000					3500	3800
Load Center	mm	500					500	500
Dimensions
Max. lifting height	mm	4217					4217	4217
Overhead Guard Height	mm	2180					2180	2180
Overall length(without fork)	mm	3639					3644	3932
Overall Width	mm	1225					1225	1225
Min.outside turning radius	mm	2215					2215	2250
Wheels, chassis
Tyre（front）		28*9-15-14PR
Tyre（rear）		200/50-10
Tyre Type		Pneumatic/ Solid
Weight
Total weight	kg	4580					5000	5300
Performance
Controls		ZAPI / INMOTION / HELI

Benefits of investing in 3 ton and 3.5 ton Lithium electric forklifts

When it comes to Lithium electric forklifts, everyone knows that China is the number 1 supplier of Lithium batteries in the world market. Specifically, leading manufacturers such as: CATL, BYD, Wanxiang, Lishen…

Regarding the installation of lithium batteries on 3.5 ton electric forklifts currently on the market, Lithium batteries are being cooperated with Chinese electric forklift HELI. Heli forklifts are currently the most supplied vehicle line on the market. Ranked No. 1 in China for 36 consecutive years, ranked No. 6 in the world market and No. 1 in the Vietnamese market.

The benefits of using Lithium Heli electric forklifts that we mention here include:

• Environmentally friendly green energy, no waste, saves costs.
• Long life, longer life cycle than lead-acid tanks, no maintenance required, no maintenance costs,
• Fast/slow charging time (optional) continuous use time: 7-8 hours or 9-10 hours depending on capacity.
• The cost of investing in a Lithium Heli electric forklift is not too high compared to European forklift segments.
• Save production costs, fuel consumption costs and maintenance service costs.
• Operational safety, explosion-proof safety and peace of mind when using Lithium batteries.
