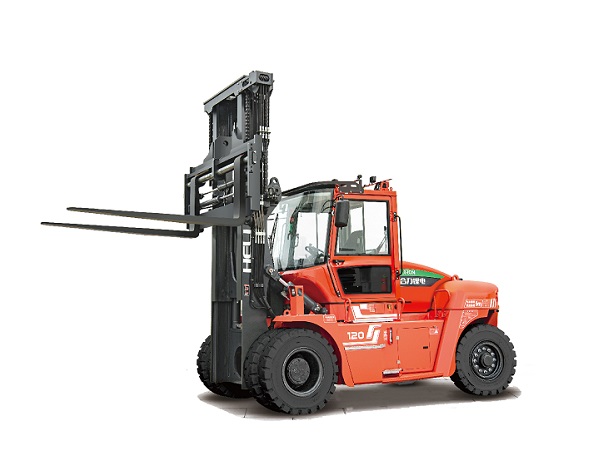

Lithium electric forklifts 12 tons to 18 tons are electric forklifts manufactured based on the design of the 12-18 ton G series diesel forklifts. The first 12-18 ton Lithium electric forklift produced in the world, Heli, Anhui wants to create a breakthrough and a new turning point in electric forklift technology on the market. The car not only brings economic convenience, saves annual costs, reduces emissions into the environment and improves work efficiency.
Features and applications of 12 ton to 18 ton Lithium electric forklifts
12 ton to 18 ton lithium electric forklifts give operators a unique experience compared to diesel forklifts. Features that will be featured on the Heli electric forklift include:
Wide vision and high strength lifting system
Excellent forward visibility is beneficial for improving occupational safety and working efficiency provided with a wide viewing column with exclusive intellectual property and fork positioner.
High voltage lithium battery system
- The electric forklift is equipped with an independent high-power fast charging interface.

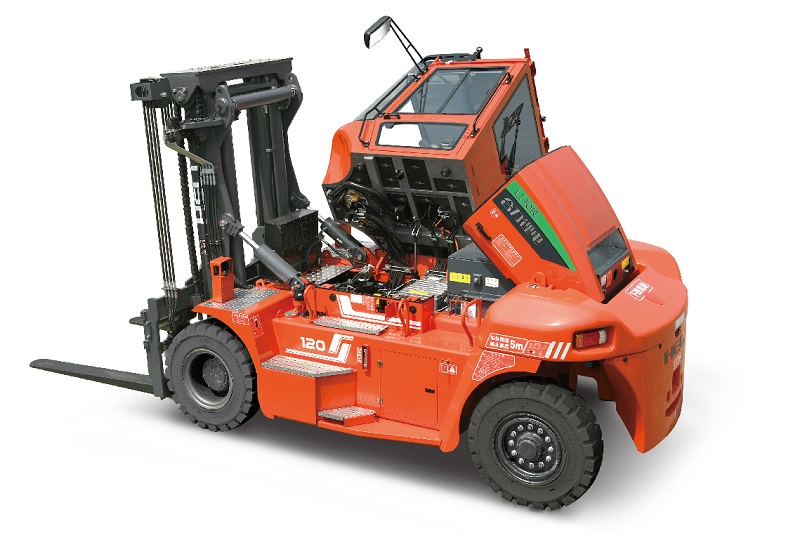

- The high voltage lithium battery is arranged up and down for convenient assembly and replacement.
- Lithium batteries have high discharge rates, high cell energy density, longer battery life and stronger power.
- The cable port area of the distribution box and the heatsink share a common detection space, making it more convenient for maintenance and repair.
- Smart fire protection system using Lithium batteries is equipped according to standards to improve safety when used.
- It only takes 1-2 hours to fully charge the battery.
Power transmission system
- Modular design traction integrated controller (five in one) New generation filament drive motor (90kW/ 180kW).
- The stator adopts dual technology, is compact, efficient, has low cost and high output power torque.
- Permanent magnet reluctance design has the advantages of permanent magnet motors, while reducing back EMF to ensure safety.
- Water cooling improves overall engine performance.
- Protection level reaches IP67, can meet working requirements in all weather.
Gearboxes & Torque Converters
- Imported ZF 3WG131 gearbox
- Electronic smart gear shift technology.
- Smooth gear shifting without jerking.
- Easy gear shifting.
- Highly efficient energy combination.
- Safe and reliable, low noise.
- With fault diagnosis function
Quad pump proportional variable hydraulic brake system
- Hybrid variable hydraulic systems have greater integration, greater energy efficiency and faster system response.
- Proportional control on the entire truck’s hydraulic main operation has more performance parameters, suitable for operational application.
- Engine speed adaptation system provides more flexible steering and greater efficiency.
- The smart pump motor integrates a multi-channel heat dissipation system to ensure long-term reliable operation of the entire power and drive system.
Wet drive shaft
- Wet brake system is used, has stable working performance and is not affected by external regulation, does not require maintenance, greatly reducing maintenance costs. The friction plate is immersed in oil for cooling, which can greatly reduce the working temperature, greatly improve the braking performance and life of the braking system, and can meet the frequent braking requirements in time. long, high intensity, short distance such as in cabins, metallurgical plants.
Smart safety
- Smart digital display engine monitors the overall status of the entire electric forklift and ensures the safety of the forklift’s operation.
- Intelligent temperature management system realizes real-time heat management in different zones and ensures suitable working temperature of the forklift.
- Smart fire protection system provides high safety protection.
- Intelligent column height angle detection safety control system improves driving safety.
- Intelligent visual reverse radar monitoring system provides comprehensive safety protection.
Comfortable operation
- The machine interface of the entire forklift is reasonably arranged and the machine operator’s comfort is greatly improved.
- Forklift viewing angle is absolutely outstanding.
- Integrated aviation-grade handle provides proportional control and more comfortable operation.
- Fully hydraulic load-sensing priority steering system makes the steering light and agile.
- High voltage air conditioning has high energy usage and a more comfortable driving environment.
- The truck has anti-slip safety walkways on both sides for boarding and disembarking, a fan-shaped maintenance platform for the cabin and spacious space for operations.
Basic technical specifications of Lithium electric forklift 12 tons to 18 tons
| Performance specs | ||||||
| Model | Unit | CPD120 | CPD135 | CPD150 | CPD160 | CPD180 |
| GA7ZLi-09 | GA7ZLi-06 | GA7ZLi-06 | GA7ZLi-06 | GA7ZLi-06 | ||
| Rated Capacity | Tấn | 12T | 13.5T | 15T | 16T | 18T |
| Load Center | mm | 900 | 600 | 600 | 600 | 600 |
| Lifting speed/ Lower speed | mm/s | 320/340 | ||||
| Movement speed | km/h | 17/19 | ||||
| Ability to climb slopes | % | 25 | 20 | |||
| Size specifications | ||||||
| Length L1 | mm | 6705 | ||||
| Width B | mm | 2560 | ||||
| Height H | mm | 3365 | ||||
| Axle distance L5 | mm | 3250 | ||||
| Free lifting height H2 | mm | 260 | ||||
| Height to seat H6 | mm | 1970 | ||||
| Turning radiusR2 | mm | 4500 | ||||
| Front vehicle width W1 | mm | 1888 | ||||
| Rear vehicle width W2 | mm | 2120 | ||||
| Frame height H1/H5 | mm | 3365/4865 | ||||
| Max lifting height H3 | mm | 3000 | ||||
| Frame tilt angle | ° | 6/12 | ||||
| Fork size | mm | 1820x200x85 | 1370x200x85 | |||
| Fork distance | mm | 500-2370 | ||||
| Lithium Battery | ||||||
| Lithium Battery Hiệu | ENEROC – CATL | |||||
| Battery voltage/capacity | 531.3 V/ 302 Ah | |||||
| CPD120 | Standard | |||||
| CPD135 | Standard | |||||
| CPD150 | Standard | |||||
| CPD160 | Standard | |||||
| CPD180 | Standard | |||||
| Power charger | HUAWEI 120KW/750V | |||||
| HUAWEI 160KW/750V | ||||||
Lifting frame 12-18 tons
| Frame model | Height (mm) | Rated Capacity (kg) | Lifting frame height (mm) | Frame tilt angle (°) | ||||
| M300 | 3000 | 12000 | 13500 | 15000 | 16000 | 18000 | 3365 | 6/12 |
| M350 | 3500 | 12000 | 13500 | 15000 | 16000 | 18000 | 3450 | 6/12 |
| M400 | 4000 | 12000 | 13500 | 15000 | 16000 | 18000 | 3700 | 6/12 |
| M450 | 4500 | 12000 | 13500 | 15000 | 16000 | 18000 | 3950 | 6/12 |
| M500 | 5000 | 12000 | 13500 | 15000 | 16000 | 18000 | 4200 | 6/6 |
| M550 | 5500 | 11000 | 12500 | 14000 | 15000 | 17000 | 4450 | 3/6 |
| M600 | 6000 | 10000 | 11500 | 13000 | 14000 | 16000 | 4700 | 3/6 |
| M650 | 6500 | 9000 | 10500 | 12000 | 13000 | 15000 | 4950 | 3/6 |
Application in the use of Lithium electric forklifts
Heli lithium electric forklifts are widely used in the Vietnamese market. Lithium electric forklifts of 13.5 tons, 15 tons, 16 tons and 18 tons are used in industries: wood, container lifting, steel lifting, aluminum and logistic transport service activities…
