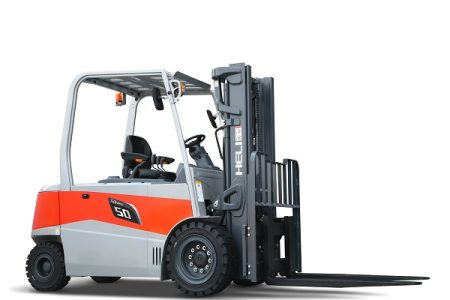

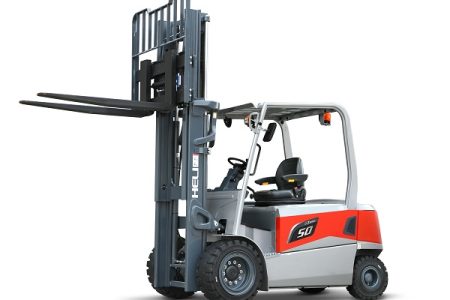

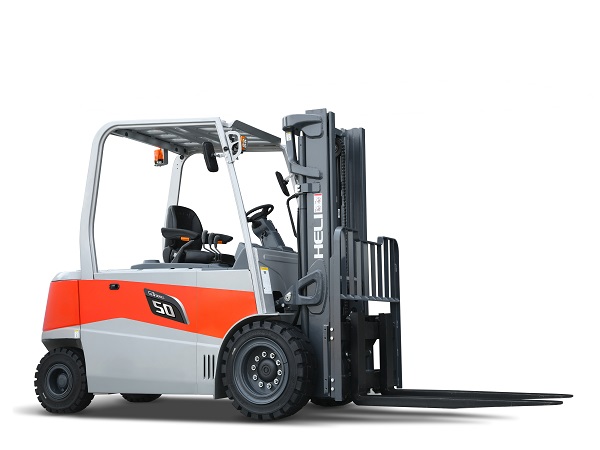

Lithium-ion electric forklifts 4 tons to 5 tons model CPD40-GB2Li, CPD45-GB2Li, CPD50-GB2Li G3 Series, high-end and new versions of HELI forklift company. Not only does it meet common functions, the application of convenient technology, along with a reliable safety system, gives users a great experience. Comfortable air seat system, modern hydraulic control lever, simple operation, significantly improved lifting and moving performance thanks to the use of a quality electric motor. In addition, Heli G3 series electric forklifts are equipped with Lithium batteries from the world-famous CATL brand, with long service life and saving on periodic maintenance costs.
Features of Lithium-ion electric forklift 4 tons to 5 tons G3 series
High Reliability
- Maintenance-free integrated axle which is mature and has been tested by market is used on the truck.
- Oil-cooled wet disc type brake is free from maintenance.
- Maintenance-free AC motors are used for driving and pump motors
- World famous controller is used.
- Large smart instrument can monitor the truck state overally and it is safe and reliable.
High Safety
- Tail-free structure reduces the center of gravity and improves lateral stability.
- High strength and integrated type welded overhead guard improves safety.
- Side-pulling battery changing way is standard configuration and improves battery changing efficiency
- Middle-positioned battery reduces the center of gravity and improves stability.
- High positioned rotation point of rear axle improves lateral stability of the truck.
- Automatic deceleration when steering improves working safety.
- Mast lifting buffering improves operation safety.
More Energy Saving
- LED lights are more energy saving.
- Independent steering system is energy saving and high efficiency.
- Special types for electric trucks are adopted and make travelling more energy saving.
- Steering unit with super low torque is more energy saving.
Improved man-machine comfort
- Mast lifting and falling buffering makes operation safe and comfortable.
- The truck has lower pedal height and larger egress and ingress space.
- Standard configuration of steering active by steering wheel reduces steering process.
- Suspension seat and wide view mast improve driving experience.
- Optimal battery layout and design of counterbalance improve the rear view.
- Lower layout of tilting cylinder improves the space for legs.
Easy Maintenance
- The controller is inside of the balance weight and it is easy for maintenance.
- Removable oil tank and floor board make maintenance easier
Technical specifications of electric forklift 4 tons to 5 tons Lithium G3 series
| Model | Unit | CPD40 | CPD45 | CPD50 | |
| Configuration number | GB2LI | ||||
| Rated Capacity | kg | 4000 | 4500 | 5000 | |
| Load Center | mm | 500 | |||
| Standard lift height | mm | 3000 | |||
| Free lift height | mm | 150 | 150 | 150 | |
| Overall length(with fork/without fork) | mm | 2920 | 2920 | 2920 | |
| Overall width | mm | 1350 | 1350 | 1500 | |
| Overall height(overhead guard) | 2275 | 2275 | 2270 | ||
| Wheel base | mm | 1960 | |||
| Total Weight | kg | 6670 | 6835 | 7210 | |
| Controller | ZAPI | ||||
| Lithium battery | Eneroc-CALTL | ||||
| Battery voltage/capacity | V/Ah | 80/404 | |||
| Lifting speed/ Lower speed | mm/s | 450/500 | 450/500 | 450/500 | |
| Movement speed | km/h | 14 | 14 | 14 | |
| Ability to climb slopes | % | 27 | 26 | 25 | |
Application in the use of Lithium electric forklifts
Heli lithium electric forklifts are widely used in the Vietnamese market. Lithium electric forklifts of 4 tons, 4.5 tons, and 5 tons are used in industries: wood, container lifting, steel lifting, aluminum and logistic transport service activities…
